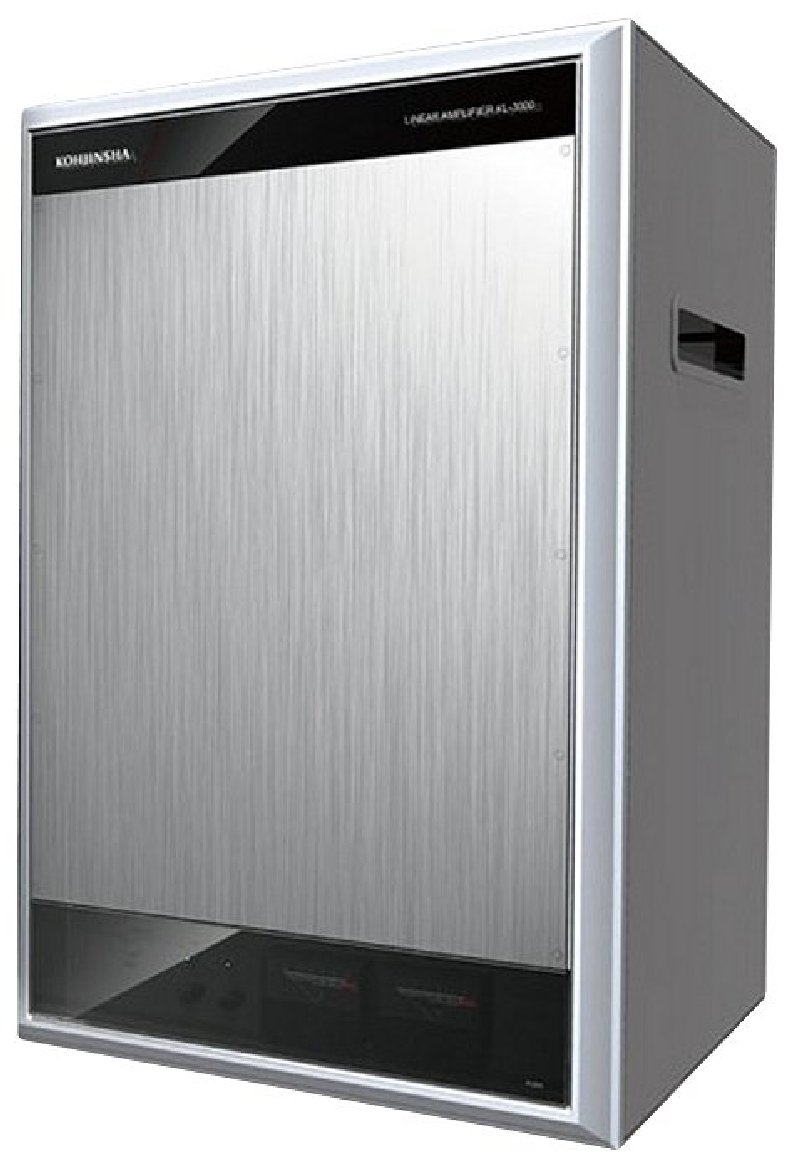

Kojinsha KL-1
| Type: |
All Mode HF Power Amplifier |
| Frequency Range: |
10-160 m + WARC |
| Voltage: |
Mains |
| Current Drain: |
? A |
| Drive power: |
50-200 W |
| Maximum Power output: |
5 KW |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
Floor console: 478*800*564 mm
Controller: 320*107*168 mm |
| Weight: |
Floor console: 106 Kg
Controller: 3.5 Kg |
| Manufactured: |
Japan, 2011-20xx |
| Other: |
RS232C, USB, SteppIR interface. 6*antenna switch.
3CX3000A7 power tube |
